How to Use Backer Rods Before Caulking Joints

Backer rod is a foam filler installed inside a joint before caulking, and proper placement can mean the difference between a long-lasting seal and one that cracks, tears, or separates prematurely. Knowing how to use backer rod starts with three jobsite decisions: choosing the right diameter, setting the correct sealant depth, and matching the rod to conditions found in concrete and masonry joints. For contractors working on slabs, precast panels, tilt-up construction, and masonry transitions, getting those details right helps the finished joint handle movement without wasting sealant.

When Caulk Joints Fail Without a Backer Rod

Sealant needs room to stretch and compress as concrete or masonry joints move. When caulk bonds to both joint walls and the bottom, three-sided adhesion restricts that movement. Instead of flexing across the joint, the sealant is pulled in multiple directions, increasing the chance of cracking, tearing, or separating prematurely, sometimes after only a season of joint movement.

Backer rod prevents this problem by acting as a bond breaker at the bottom of the joint. The sealant bonds to the two opposing sides while remaining free underneath. Proper depth also creates the preferred hourglass-shaped bead, helping the sealant flex repeatedly as the joint expands and contracts.

Sizing Your Backer Rod To The Joint Width

Learning how to use backer rod starts with measuring the joint at several points, especially when concrete edges are uneven. The rod needs enough compression to stay seated without excessive force during installation. As a general rule:

• Rod diameter: Select backer rod about 25–30% larger than the joint width. For a 1/2" joint, 5/8" rod is a common fit.

• Sealant depth: Set the rod so the caulk depth is about half the joint width. A 1/2" wide joint typically calls for roughly 1/4" of sealant.

This 2:1 width-to-depth ratio creates the bead geometry needed for movement while limiting excess sealant use.

Closed Cell vs Open Cell: When to Use Which

Rod type should match the joint’s exposure, orientation, and sealant specifications. For concrete and masonry work, the main differences come down to moisture resistance and installation characteristics.

For wet or exterior applications, closed-cell rod is generally the safer choice. Always check the sealant manufacturer’s specifications before selecting either type.

Step-by-Step: Installing Backer Rod Before Caulking

Clean and Prep the Joint

Remove old sealant, loose concrete, dust, dirt, oil, and other debris that could interfere with adhesion. A wire brush, scraper, vacuum, or compressed air may be appropriate depending on the joint. Check the sealant manufacturer’s instructions for acceptable surface conditions and primer recommendations before installing the rod.

Cut and Place the Backer Rod

Cut the rod to the required length, leaving enough material to ensure continuous coverage through the joint. Press it into place with a blunt setting tool or roller rather than a screwdriver or other sharp object. Avoid stretching, twisting, or puncturing closed-cell foam, since damaged cells can contribute to outgassing beneath uncured sealant.

Set the Correct Depth

Press the rod evenly to the depth needed for the specified sealant profile. For many joints, the target bead depth is roughly half the joint width, creating a 2:1 width-to-depth ratio. Check the depth along the entire run rather than assuming the joint is uniform, particularly across irregular concrete or masonry edges.

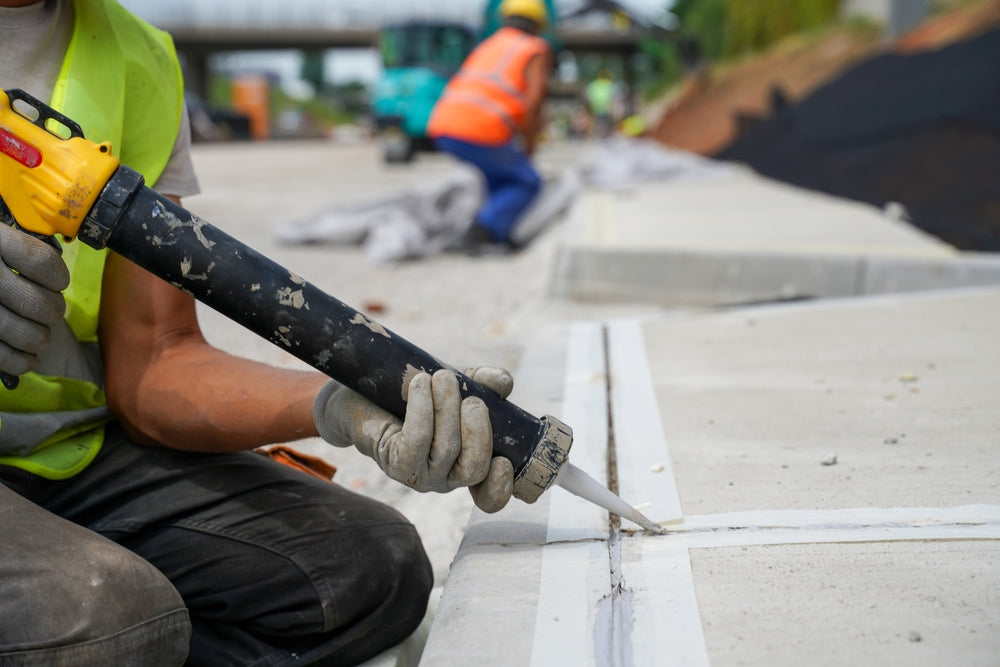

Apply the Caulk Over the Rod

Apply a continuous bead over the installed rod, keeping it in contact with both joint walls without bonding to the bottom. Tool the bead according to the sealant manufacturer’s directions to create consistent contact and a clean profile. Correct placement helps the cured sealant stretch and compress as the joint moves.

Where Backer Rod Is Essential on Concrete Jobs

Backer rod has uses across commercial concrete and masonry work, particularly where joints must accommodate movement or maintain a controlled sealant profile. Choosing the right expansion joint foam and depth becomes especially important in applications such as:

• Concrete expansion joints: Accommodate slab movement while controlling sealant depth.

• Control joints in slabs: Create consistent backing for properly sized sealant beads.

• Precast panel joints: Manage movement between adjoining concrete components.

• Tilt-up construction: Back sealed joints between wall panels.

• Masonry-to-concrete transitions: Handle movement between dissimilar materials.

• Window and door perimeters: Establish proper sealant geometry along concrete facades.

Each application should follow the sealant manufacturer’s joint dimensions and installation specifications.

Common Mistakes When Using Backer Rod

Using the Wrong Rod Diameter

An undersized rod can shift, sink, or leave an inconsistent sealant depth. Excessive compression can complicate placement and damage closed-cell foam. Measure the joint at multiple points and select the diameter based on actual width.

Setting the Rod at the Wrong Depth

Rod placement directly controls caulk thickness. Setting it too deep wastes sealant, while placing it too shallow can leave an inadequate bead. Follow the specified joint geometry and maintain a consistent depth along the run.

Using Open Cell in Wet or Exterior Joints

Open-cell foam can absorb moisture, making it a poor choice for many wet, horizontal, or exposed joints. Closed-cell rod is generally better suited to these conditions, subject to the sealant manufacturer’s specifications.

Skipping Joint Prep Before Installation

Dust, old caulk, loose concrete, oils, and other contaminants can interfere with adhesion at the joint walls. Clean the joint thoroughly before inserting the rod so the new sealant contacts sound, prepared surfaces.

Sealant Compatibility: Matching Backer Rod to Your Caulk

Backer rod selection should account for sealant chemistry, moisture exposure, and manufacturer specifications. For most concrete and masonry jobs, the choice falls into two categories:

• Closed cell: Commonly paired with polyurethane, silicone, acrylic, and hybrid sealants. Its moisture resistance suits many exterior and horizontal joints.

• Open cell: Best reserved for compatible sealants that benefit from permeable backing and dry, protected applications. Avoid it where water can collect or penetrate the foam.

Before installation, check the sealant data sheet for backing requirements, bead dimensions, and primer instructions. Contractors can also compare DCS adhesive, epoxy, and sealant options when selecting materials for the complete joint system.
