Anchor bolts are installed by laying out locations from the plans, setting the bolts before or during the pour, and verifying alignment and embedment depth before the concrete cures. For existing foundations, bolts are typically secured using expansion or adhesive anchoring systems.
While the process is straightforward, proper sizing, spacing, and installation play a major role in passing inspection and achieving a strong connection between the foundation and framing above.

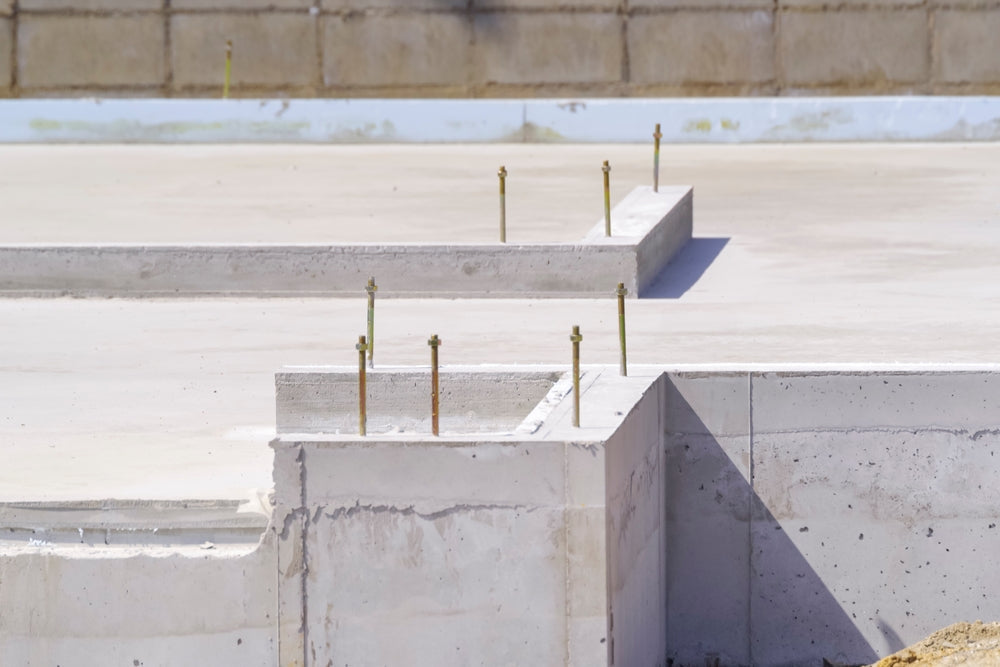

Foundation anchor bolts create the connection between a concrete foundation and the framing or structural components above it. During a pour, their location, spacing, and embedment depth must align with project plans and code requirements. Improper placement can lead to framing conflicts, inspection issues, or costly corrections after the concrete has cured. Taking time to plan bolt placement before the pour helps crews maintain schedule efficiency and achieve a secure foundation-to-structure connection.
Several anchor bolt styles are used in foundation construction. The right choice depends on installation method, load requirements, and whether the bolt is placed before or after the pour.
Cast-in-place J-bolts and L-bolts are installed before the concrete cures, making them a common choice for new foundation construction. Their bent ends create mechanical resistance within the concrete, helping secure sill plates and structural framing. These bolts are often specified in residential foundations due to their simplicity and reliable performance.
Wedge, sleeve, and expansion anchors are typically used when attaching materials to existing concrete. After a hole is drilled, the anchor expands against the sides of the concrete to create a secure hold. These options are commonly selected for retrofit projects, equipment installation, and situations where cast-in-place bolts are not practical.
Epoxy and adhesive anchors are installed by filling a drilled hole with a bonding material before inserting the bolt or threaded rod. Once cured, the adhesive creates a strong connection between the anchor and concrete. These systems are often used for retrofits, structural upgrades, and applications requiring higher pullout resistance.
Selecting the correct size starts with the project plans, applicable code requirements, and expected loads. Common diameters range from 1/2 inch to 5/8 inch, while length and embedment depth vary based on the foundation design. Using properly sized anchor bolts helps create a secure connection between the structure and concrete. Contractors should also account for plate thickness, washers, and nuts when determining the total bolt length needed for the job.
Preparation begins well before the concrete truck arrives. Crews should have anchor bolts, templates, layout measurements, washers, nuts, and any required reinforcement ready for installation. Staging related concrete supplies ahead of time helps reduce delays during the pour and allows workers to focus on accurate placement. It is also helpful to verify bolt counts, dimensions, and spacing requirements before work begins so materials are available when they are needed, and installation can proceed without interruption.
Successful installation starts before concrete placement. With layouts confirmed and materials staged alongside reinforcement and forming ties, crews can focus on accurate bolt positioning throughout the pour.
Anchor bolt placement should always follow the approved engineering drawings or building plans. Marking locations before the pour helps crews maintain proper spacing and alignment with future framing members. Taking time to verify measurements at this stage can reduce the risk of misplaced bolts, field modifications, and inspection-related delays later in the project.
Templates help keep bolts properly spaced and aligned while concrete is being placed. Depending on the project specifications, bolts may be positioned before the pour or wet-set immediately after placement. In either case, checking alignment against the plans helps prevent framing conflicts and reduces the likelihood of corrections after the concrete has cured.
As concrete is placed, proper consolidation helps eliminate voids around the bolts and promotes consistent contact with the surrounding material. After placement, crews should confirm that each bolt meets the specified embedment depth and remains plumb. A final inspection before the concrete sets can help identify alignment issues while adjustments are still possible.
Drill holes to the specified diameter and depth according to the project plans and anchor manufacturer requirements.
Clean each hole thoroughly to remove dust and debris that could affect anchor performance.
Install the selected anchoring system. Depending on the application, contractors may use expansion anchors or systems that rely on adhesives, epoxy, and sealant products.
Verify bolt alignment, embedment depth, and curing requirements before attaching structural components or placing the foundation into service.
IRC R403.1.6 establishes minimum requirements for anchoring wood sill plates to concrete and masonry foundations. While local amendments may apply, contractors should verify the following:
Anchor bolts must typically be at least 1/2 inch in diameter.
Bolts are generally spaced no more than 6 feet on center.
A minimum of two bolts is typically required per plate section.
Bolts must be located within a specified distance of plate ends.
Contractors should always confirm project plans and local code requirements before ordering materials and beginning installation.
Many inspection issues can be traced back to planning and placement errors that occur before the concrete cures. Common problems include incorrect bolt spacing, insufficient embedment depth, missing hardware, and bolts that are not properly aligned with framing layouts. Using the wrong bolt size for the application can also create compliance concerns. Verifying measurements and installation details throughout the process can help reduce the likelihood of costly corrections.
Selecting the right hardware starts with understanding the project's sizing, spacing, and installation requirements. Having the correct materials on hand before the pour can help keep crews productive and reduce delays. Whether the job calls for cast-in-place, expansion, or adhesive anchoring systems, Discount Contractor Supply carries a range of anchor bolts and related foundation products. Shop our selection to find the components needed for your next project, or contact us with questions about product selection and availability.
